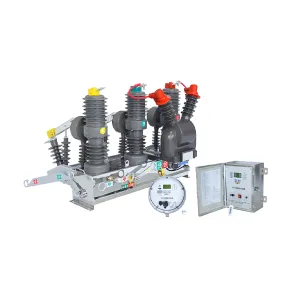

ZW32-12FG series outdoor high voltage vacuum circuit breaker (hereinafter referred to as "circuit breaker") is a rated voltage of 12kV, three-phase AC 50Hz outdoor power distribution switchgear. The circuit breaker is mainly used to break and close the load current, overload current and short-circuit current in the power line. It has overload and short-circuit protection functions, meets the control and measurement requirements, and can also realize remote control and monitoring functions. It is widely used in substations, industrial and mining enterprises' power distribution systems for control and operation, and is particularly suitable for places that require frequent operations.

Positioning: Intelligent distribution network fault isolation core equipment Core functions: Accurate fault isolation Built in zero sequence current transformer, capable of identifying and isolating single-phase grounding faults within 20ms (user side faults do not affect the main network) Support 0-3 automatic reclosing to reduce instantaneous power outage time due to faults Adaptive to all working conditions Suitable for harsh environments ranging from -40 ℃ to+70 ℃ and humidity of 95%, with maintenance free design and a mechanical lifespan of ≥ 30000 times Intelligent remote control

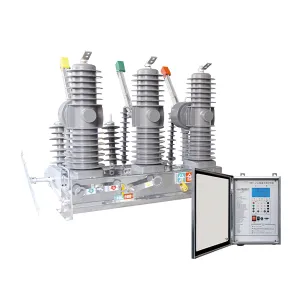

ZW32-12F series outdoor boundary Vacuum Circuit Breaker is the outdoor distribution equipment of rated voltage 12 kV, three-phase AC 50/60HZ. This VCB is mainly used in load current, overload current and short circuit current of power distribution lines opening and closing of electric power system.

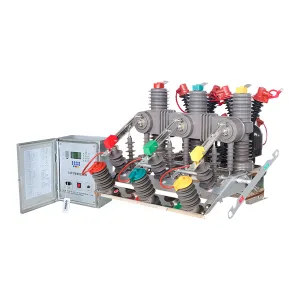

ZW32-24F series outdoor pole mounted high voltage vacuum circuit breaker is used as the main control and protective equipment in three phases power system of AC50Hz, voltage 24KV to switch on/off loading current overloading current and short circuit current, it applies to distribution system of substation, industrial enterprises to control and protect the downstream equipment.

ZW8-12F(G) intelligent outdoor high-voltage vacuum circuit breaker (hereinafter referred to as intelligent circuit breaker) is used for three-phase power system with AC 50Hz and voltage 10-12kV. It is used to disconnect and close load current. It has overload and short-circuit protection functions, quick-break protection function, time-limited delay protection function, automatic reclosing function, and can also be equipped with lightning arrester or disconnector (i.e. circuit breaker and disconnector combination, hereinafter referred to as "combined intelligent circuit breaker") according to user needs. The intelligent circuit breaker has its own power supply and can be remotely controlled nearby. It is equipped with CT and PT interfaces to meet telemetry requirements.

Three phase AC system (50Hz, 10-12kV), load current switching, overload and short circuit protection. Fast breaking protection+time limited delay protection, automatic reclosing function, optional lightning arrester or isolation switch (combination intelligent circuit breaker), built-in operating power supply, supports near/remote control, equipped with CT/PT interface, meets telemetry requirements

ZW43A-12F outdoor vacuum circuit breaker is used to make and break load current, overload current and short-circuit cur rent in 12kV, AC 50/60Hz power system. It is applicable for substations, industry and mining, urban and rural electricity power networks, especially for occasions with frequent operation and automatic power distribution network.

ZW20-12F/T□ -□ series outdoor high voltage vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor power distribution equipment with a rated voltage of 12kV and three-phase AC 50Hz. It uses vacuum arc extinguishing and SF6 gas as the insulating medium and is an improved product of ZW20-12F pole mounted vacuum circuit breaker.

ZW20-12/T□-□ series outdoor high-voltage vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor power distribution equipment with a rated voltage of 12kV and three-phase AC 50Hz. It uses vacuum arc extinguishing and SF6 gas as the insulating medium,a nd is an improved product of ZW20-12F type pole-mounted vacuum circuit breaker. The box adopts VSP5's gas sealing, explosion-proof and insulation structure technology, and the sealing performance of the inlet and outlet line ducts has also been improved. The overall sealing performance is excellent, and the SF6 gas filled inside does not leak and is not affected by the external environment; its spring operating mechanism has been miniaturized and optimized for reliability and stability, and adopts a direct-acting chain main drive and a multi-stage tripping system. The action reliability and stability are several times higher than that of the traditional domestic spring operating mechanism; the contact between the shaft and the sleeve of the main circuit adopts an inward-retracted and outward-stretched watch chain structure, and the contact resistance of the main circuit is small and the temperature rise is low. Therefore, ZW20-12F type outdoor pole-mounted vacuum circuit breaker is a maintenance-free product and a top-quality pole-mounted circuit breaker.

ZW20-12 circuit breaker, 12kV vacuum switch, rural grid protection, outdoor HV breaker，Special design for rural power grid: in line with the requirements of national grid standardization transformation Advantages of column installation: Weight<120kg, space saving for single pole installation Anti theft structure: fully sealed design+dedicated lead seal hole position

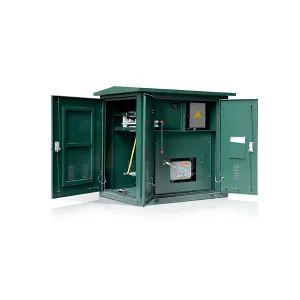

The floor-standing demarcation switch integrated prepaid metering device is a product that changes the column-mounted high-voltage metering, switch, and control box into a cabinet-type structure. It is composed of an integrally cast dry-type high-voltage metering box and a ZW32F type intelligent demarcation switch. The box is made of stainless steel or iron plate sprayed plastic. This product is easy to install in structure and has a beautiful appearance. The high-voltage part is isolated from the low-voltage meter room, and the high-voltage room cannot be opened for operation when the equipment is energized. The high-voltage room door can only be opened in the event of a power outage, which is safe and reliable. The product occupies a small area and is a combination product used in living areas, industrial and mining enterprises and box-type transformers.
