Performance advantages of plug-in heads

2025-05-22 13:28:51

As a fast connection solution for modern power systems, plug-in Connectors (detachable connectors) are gradually replacing traditional fixed connection methods due to their convenience, safety, and high reliability. This article analyzes its core technological advantages, typical application scenarios, and selection strategies, providing practical references for power system optimization.

Core performance advantages

1. Quick operation and maintenance free design

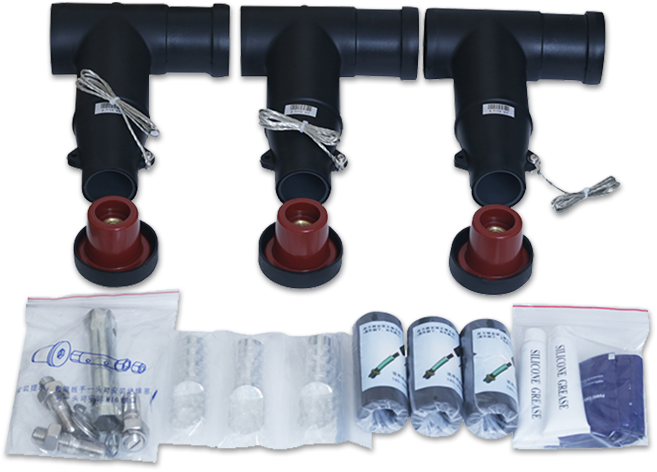

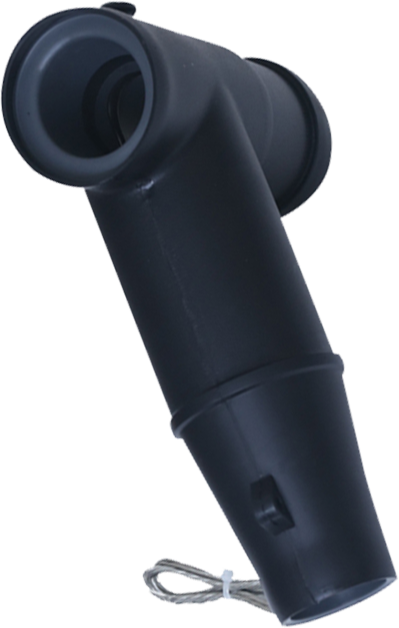

-Second level plugging and unplugging: using a buckle/thread locking structure (such as a T-shaped head), the connection can be completed without tools (operation time<30 seconds).

-Full insulation protection: The casing is made of silicone rubber/EPDM material, with a protection level of IP68 (dustproof and waterproof), suitable for harsh outdoor environments.

2. Excellent electrical performance

-Low contact resistance: silver plated copper alloy contacts (resistance<5 μ Ω), temperature rise ≤ 55K (IEC 60502 standard).

-High current carrying capacity: 200A-3000A rated current coverage, short-term withstand 40kA/1s (such as RSTI series plug-in head).

3. Safety interlocking and visual design

-Mechanical interlocking: linked with switchgear to prevent live operation (such as SafeLink technology).

-Opening and closing indicator window: The red/green markings clearly display the connection status, reducing the risk of misoperation.

Typical application scenarios

1. New energy power station

-Photovoltaic system: 1500V DC plug-in head (such as MC4-Evo2), capable of withstanding ± 100kV lightning impulse and reducing line loss by 10%.

-Energy storage container: supports frequent plugging and unplugging (>500 cycles), adapted to the rapid replacement needs of battery clusters.

2. Rail Transit and Data Centers

-Subway power supply: 750V DC plug-in head (IP69K protection), 30-year maintenance free design, reducing maintenance frequency inside the tunnel.

-Server cabinet: Hot swappable PDU connectors, supporting online Load switching (zero downtime maintenance).

3. Industrial power distribution system

-Mobile device power supply: marine/mining plug-in head (anti vibration design), capable of withstanding 10G mechanical impact.

-Emergency power access: Quickly connect to a generator vehicle (such as BullDog) ? Connect the power supply within 5 minutes.

 Selection and Usage Suggestions

1.  Voltage level matching

-Low voltage (1kV): Optional injection molded plug (low cost).

-Medium voltage (10-35kV): Choose prefabricated silicone rubber plug heads (such as European front connectors).

2.  Environmental adaptability

-High altitude: UV resistant coating (such as black EPDM material).

-Chemical Industry Zone: Fluorine rubber seals (resistant to acid and alkali corrosion).

3.  Brand and Certification

-International brands: TE Connectivity, ABB, St ? ubli (certified by UL and IEC 62821).

-Domestic alternatives: AVIC Optoelectronics, Yonggui Electric (high cost-effectiveness, compatible with State Grid standards).

Key points of maintenance and management

1.  Regular testing

-Measure the contact resistance every 6 months (if the deviation is greater than 15%, it needs to be replaced).

-Check the condition of silicone grease (apply Dow Corning when dry)   Insulation silicone grease No. 4).

2.  Life management

-Mechanical lifespan: ordinary type>500 cycles, industrial grade>5000 cycles.

-Electrical lifespan:>100 on-off cycles at full load (according to IEEE 386 standard).
